Art Deco Cameras

Vredeborch Slomexa Box

Specification

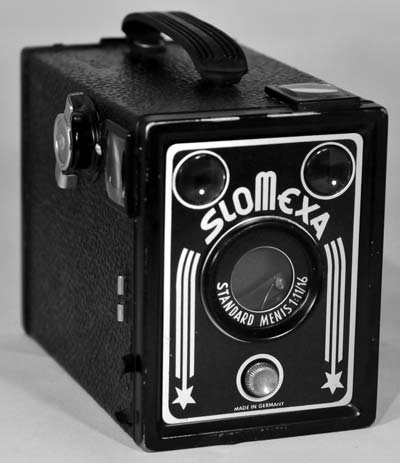

Vredeborch Slomexa
Vredeborch Slomexa
Manufacturer: Vredeborch
Produced: 1955
Classification:Medium Format
Body Type:Box
Construction:Metal
Film Type:120
Film width:62mm
Image Size:2¼ x 3¼ in
Lens Type:Meniscus
Focus Type:Fixed
Focal Length:90mm
Focus Range:3m to inf.
Aperture Type :Multihole + yellow filter
Aperture :f/11, f/16
Shutter Type:Rotary
Shutter Speeds:B,I*(1/50 sec)
Size (w x h x d):80 x 102 x 125 mm
Weight:466g
* Measured on this camera

Art Deco Credentials

star star star
Noteworthy: Worth giving special attention

Description

The Slomexa was manufactured by Vredeborch GmbH, Nordenham, Germany. It is part of a series of medium format film box cameras made by this company. This model has a central strap whereas early models had a diagonal strap. Vredeborch produced cameras for other distributors based on the Vrede Box. This camera is almost identical to the Vrede Box. Simlar cameras were produced for Alka, Filmor, Fodor, G-M-Box, Haaga, Helios, Hanimex, Joy-Box, Manex, Monty, N-Box, Prinz Pilot, Photopia, Regia Box, Texar and Union.

The Slomexa has typical controls for this era. The shutter can be operated in Instant(I) or Timed(T) mode. A small tab can be used to switch to timed mode. When used in timed mode, the shutter can be locked open using a small switch. The camera also provides a connection for a cable release. The aperture can be set to f/11 or f/16 by a pull out tab. A knob on the front allows a yellow filter to be swung into place. The yellow filter is used to enhance skies on B/W film.

Film is advance using a turn-key and the frame number is viewed through a red window on the back. The red window does not have a cover. It has two brilliant viewfinders for both landscape and portrait mode. There are two tripod mounts allowing stabilization in portrait or landscape orientation.

How to Use

Find the User Manual for a similar model here:- Vrede Box Manual.

This camera takes 120 film which is easily available.

As the shutter speed is only 1/50s, it is advisable to use a tripod to get clear shake free images. However, holding it against a wall or other solid object would work as well. For quick snapshots, hold it firmly against your body.

If you don't want to bother with an exposure meter, follow the guide shown. It is based on the 'Sunny 16' rule. Film is so forgiving and will produce acceptable results even when overexposed by 2 or 3 stops or underexposed by 1 stop.

The tables assume that the sun is at least 30 degrees above the horizon - that's 10am - 5pm on a summers day (May - August) in the UK.

Remember that the exposure guide in the manual may not be helpful as it is based on the use of old film with a low ISO value.

Using ISO 100/125 film - shutter speed 1/50s

Weather ConditionsShadow DetailApertureExposure
Sunny
Snow/Sand
Dark
with sharp edges
f/16+2 Stops
Overexposed
Acceptable
SunnyDistinctf/16+1 Stop
Overexposed
Acceptable
Slight OvercastSoft around edgesf/16Good
OvercastBarely visiblef/11Good
Heavy OvercastNonef/11-1 Stop
Underexposed
Acceptable
Open Shade
/Sunset
Nonef/11-2 Stops
Underexposed
Not Acceptable
