|Image Size||:||2¼ x 3¼ in|
|No. of Images||:||8|
|No. of Images||:||8|
|Focus Range||:||10ft to inf.|
|Aperture Type||:||Fixed plus Green Filter|
|Shutter Speeds||:||B, I*(1/50 sec)|
|Size (w x h x d)||:||95 x 110 x 125 mm|
|* Measured on this camera|
Art Deco Credentials
Limited: Minor and insubstantial
- Produced after the main Art Deco period;
- Brushed Alloy front plate;
- Ribbed Bakelite body front;
- Ribbed plastic strap handle
- Symmetrical front plate
- Embossed lines on leatherette on sides.

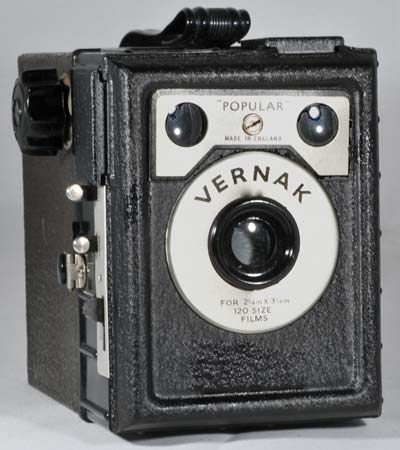

The Vernak Popular Box camera uses rollfilm No.120. It is a simple box camera designed for capturing eight 6x9cm pictures. It is constructed in two parts. The front is made from ribbed Bakelite with a decorative metal front plate. The rear is a cardboard box. It features black hinged view finder covers over two brilliant finders for landscape or portrait photos. It has a nice ribbed plastic strap. The red window on the back has a swinging metal cover.
The meniscus lens has a fixed focus. The shutter has two settings: instant or time, although the time setting is more like 'bulb'. There is a tab to pull to switch between instant and time exposures. The film advance is not coupled to the shutter release so double exposure is possible. A built in green filter can be pulled into place by a lever on the side. The green filter can be used for photographing plants, separating the green foliage from the brightly-coloured flowers. It can also be used in landscape photography to boost the appearance of grass and trees.
How to Use
This camera takes 120 film which is easily available. Keep the cover on the red window except for winding on in low light. Modern film is sensitive to red light.
As the shutter speed is only 1/50s, it is advisable to use a tripod to get clear shake free images. However, holding it against a wall or other solid object would work as well. For quick snapshots, hold it firmly against your body.
If you don't want to bother with an exposure meter, follow the guide shown. It is based on the 'Sunny 16' rule. Film is so forgiving and will produce acceptable results even when overexposed by 2 or 3 stops or underexposed by 1 stop.
The tables assume that the sun is at least 30 degrees above the horizon - that's 10am - 5pm on a summers day (May - August) in the UK.
Remember that the exposure guide in the manual may not be helpful as it is based on the use of old film with a low ISO value.
Using ISO 100/125 film - shutter speed 1/50s
|Weather Conditions||Shadow Detail||Aperture||Exposure|
with sharp edges
|Slight Overcast||Soft around edges||f/16||Good|
|Overcast||Barely visible||f/16||-1 Stop|
|Heavy Overcast||None||f/16||-2 Stops|
