Art Deco Cameras

Coronet Supreme Deluxe

Specification


Coronet Supreme Deluxe
Coronet Supreme Deluxe
Manufacturer: Coronet
Produced: 1935
Classification:Medium Format
Body Type:Box
Construction:Cardboard/Metal/Wood/
Film Type:120
Film Width:62mm
Image Size:2¼ x 3¼ in
No. of Images:8
Lens Type:Meniscus
Focus Type:Fixed
Focal Length:105mm
Focus Range:8ft to inf.
Aperture Type :Fixed
Aperture :f/14
Shutter Type:Rotary
Shutter Speeds:I*(1/25 sec)
Size (w x h x d):90 x 105 x 125 mm
Weight:402g
* Measured on this camera

Art Deco Credentials

star star
Acceptable: Modest and restricted

Description

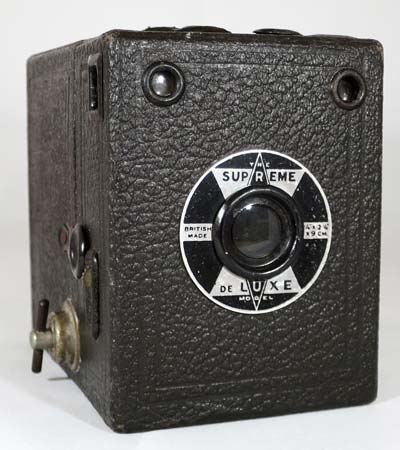

Unfortunately, there is nothing 'supreme' or 'deluxe' about this camera. The front of this camera has an Art Deco geometric design. The rest of the camera is simply covered in leatherette cloth. The leatherette is embossed with double lined rectangles. It is basically a cardboard box with the shutter mechanism mounted on a block of wood in the centre of the camera. It has two very small waist level viewfinders, one for portrait and one for landscape images. It has a genuine leather handle. There are no tripod sockets.

It has a simple meniscus lens with an aperture of f/14. The shutter is a toggle type. Press down for first photo and pull up for next. The speed of the shutter on this camera was measured as 1/25 sec in one direction and 1/20s in the other. It has a tommy bar to wind on the film. A red window is provided on the rear of the camera to view the frame numbers. It takes 8 photos on 120 film.

How to Use

This camera takes 120 film which is easily available.

As the shutter speed is only 1/25s, it is advisable to use a tripod to get clear shake free images. However, holding it against a wall or other solid object would work as well. For quick snapshots, hold it firmly against your body.

If you don't want to bother with an exposure meter, follow the guide shown. It is based on the 'Sunny 16' rule. Film is so forgiving and will produce acceptable results even when overexposed by 2 or 3 stops or underexposed by 1 stop.

The tables assume that the sun is at least 30 degrees above the horizon - that's 10am - 5pm on a summers day (May - August) in the UK.

Remember that the exposure guide in the manual may not be helpful as it is based on the use of old film with a low ISO value.

Using ISO 100/125 film - shutter speed 1/25s

Weather ConditionsShadow DetailApertureExposure
Sunny
Snow/Sand
Dark
with sharp edges
f/14+3 Stops
Overexposed
Acceptable
SunnyDistinctf/14+2 Stops
Overexposed
Acceptable
Slight OvercastSoft around edgesf/14+1 Stop
Overexposed
Acceptable
OvercastBarely visiblef/14Good
Heavy OvercastNonef/14-1 Stop
Underexposed
Acceptable
Open Shade
/Sunset
Nonef/14-2 Stops
Underexposed
Not Acceptable
